MetaSole梯形彩钢瓦屋面光伏支架安装方案

太阳能光伏支架11周年

With a mounting time of less than 10 minutes per kWp and a weight below 1.3 kg per kWp, MetaSole sets new standards for the installation of PV systems on trapezoidal metal sheet roofs made of steel an…

With a mounting time of less than 10 minutes per kWp and a weight below 1.3 kg per kWp, MetaSole sets new standards for the installation of PV systems on trapezoidal metal sheet roofs made of steel and aluminium sheet.

If you want to install a PV system on a pitched roof with trapezoidal metal sheet construction and at the same time prefer a simple installation and optimal cost-performance ratio, MetaSole offers you the perfect solution.

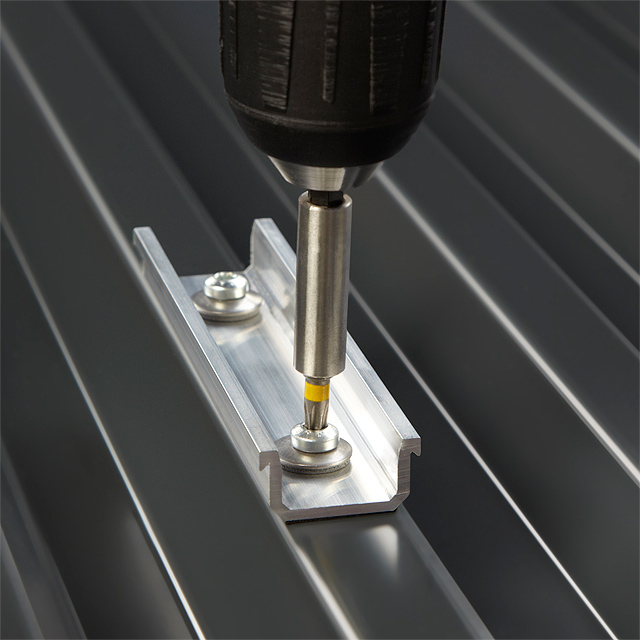

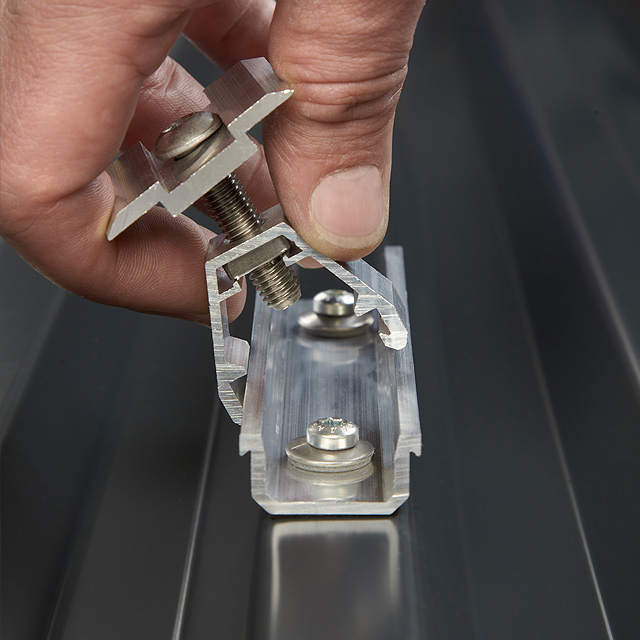

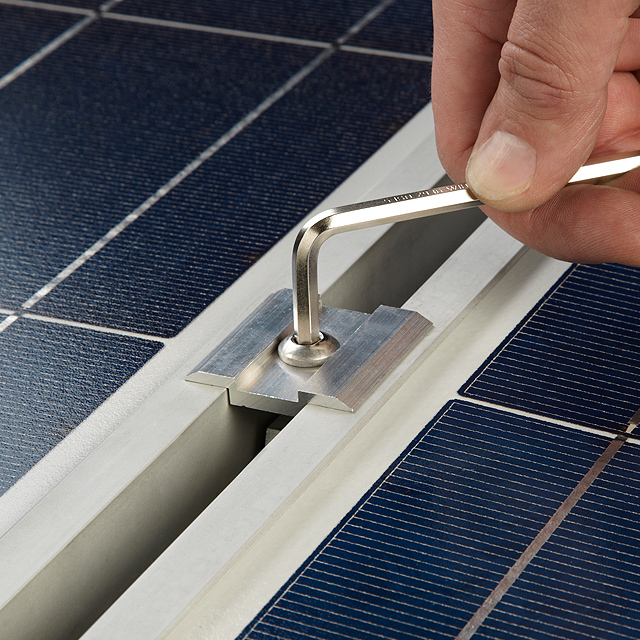

The compact system makes the fast mounting of framed PV modules on trapezoidal sheet metal roofs between 0.4 mm and 1.5 mm thickness possible. Only four different components are required for the direct installation of the modules: a clamp base with optimised weight, two thin sheet metal screws with special coating, one end clamp, and one middle clamp. The screw with a crowding tip makes pilot drilling unnecessary, which results in extremely short mounting time. The smaller volume, the absence of rails, fewer components, thus the reduction to the absolute minimum results in very low investment costs.

MetaSole makes logistics affordable and fast, warehousing cost-effective and easy mounting possible.

MetaSole梯形彩钢瓦屋面光伏支架安装方案 MetaSole梯形彩钢瓦屋面光伏支架安装方案 MetaSole梯形彩钢瓦屋面光伏支架安装方案
